Kids Bike Tire Rubbing Frame: Diagnosis Checklist

A kids bike tire rubbing frame creates drag and can wear the tire sidewall, but moving the wheel or bending nearby parts without diagnosis can create a greater safety problem. The tire may be oversized or unevenly seated, the rim may wobble, the axle may sit crooked, or the frame or fork may have impact damage. Keep the child off the bicycle.

Locate the exact contact point

Support the bike only through an approved method and rotate the wheel slowly with fingers clear of spokes. Watch both sides at the fork, stays, brake, fender, and guard. Mark where contact occurs after rotation stops. A constant narrow gap differs from a rub that moves around once per revolution, so record whether tire or rim position changes.

Check tire pressure and seating

Measure pressure within the sidewall range and inspect the molded seating line around both sides. Look for a bulge, cut, casing damage, exposed tube, or replacement tire whose full width and bead-seat size do not match. Do not exceed pressure to reshape the tire or deflate below the approved range merely to create frame clearance.

Verify wheel seating and retention

Compare both axle ends, washers, nuts, or quick-release parts with the exact manual. A wheel sitting unevenly can rub the frame and change brake or chain behavior. Do not loosen one side and center it by eye. Rear-wheel correction may also require chain tension or derailleur alignment, followed by the specified final torque.

Separate rim wobble from structural damage

Watch the rim against a fixed brake or frame reference. Loose spokes, a bent rim, hub play, or impact-damaged fork or stays can shift the wheel path. Do not pull the frame apart, bend the fork, or tighten individual spokes randomly. Cracks, dents, large wobble, and recurring misalignment require a qualified bicycle technician.

Confirm every clearance after service

After approved repair, rotate through many revolutions and check tire, rim, brakes, fenders, and drivetrain. Apply each brake and turn the steering through its range. An adult walks and rides the bicycle briefly on level ground. Any recurring rub, sidewall mark, pulling, axle movement, or unusual sound keeps the bike parked.

How current product examples clarify the choice

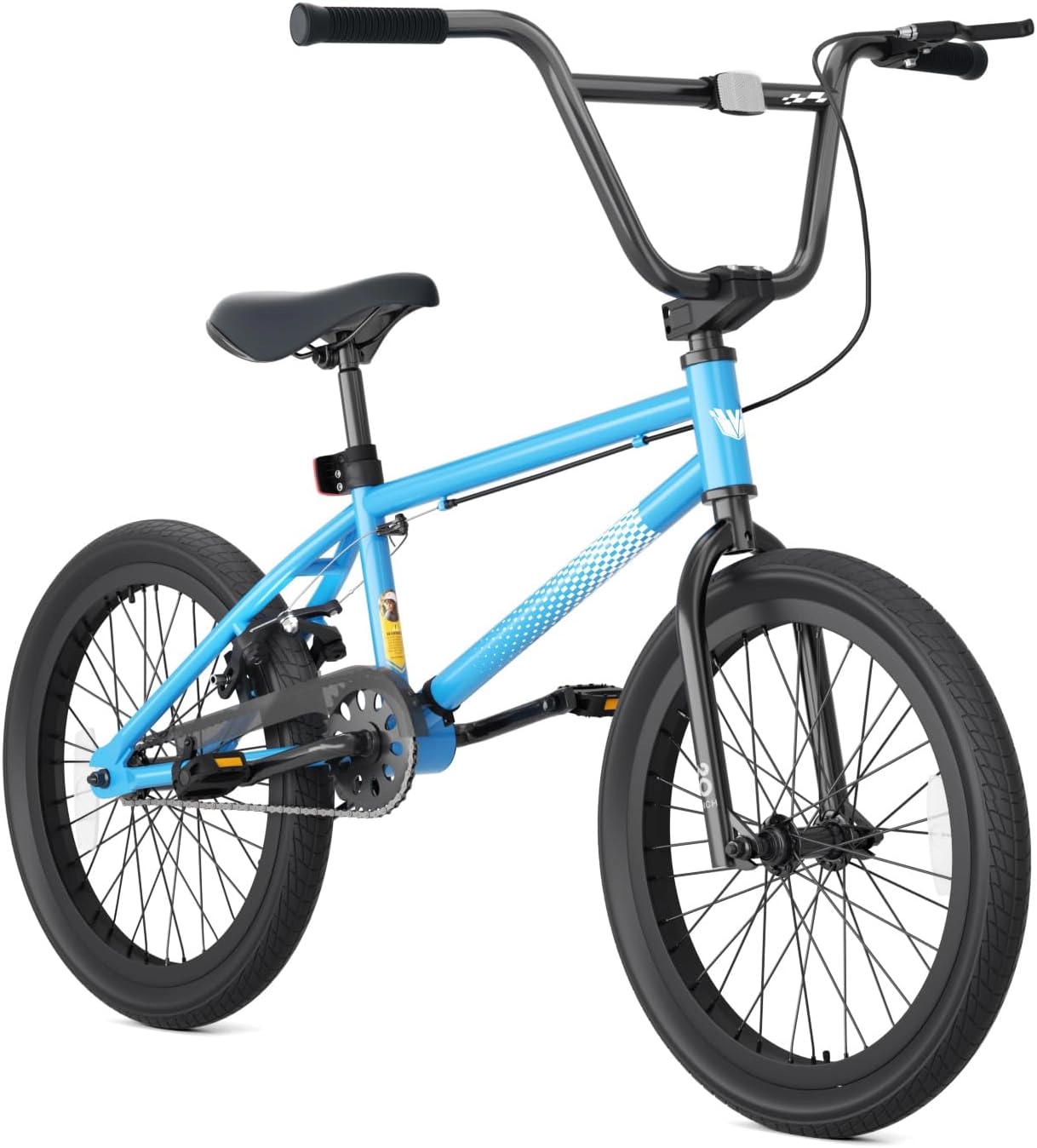

The Mint Green XJD Geared Beach Cruiser and Blue XJD 20-Inch Freestyle BMX Bike use visibly different tire widths, brakes, and surrounding hardware. They demonstrate why the broad 20-inch or bicycle-style label is not enough. Full tire dimensions and actual frame, fork, fender, and brake clearances control compatibility.

Related reading on this site

For the next step, compare this check with our beach cruiser bikes and tire bulge inspection guide. These pages provide nearby fit, component, or maintenance context without replacing the exact product manual.

Practical checklist

• Mark the exact contact area.
• Inspect the seating line.
• Verify axle retention.
• Stop for frame or fork damage.

Frequently asked questions

Can I use a narrower tire to stop frame rubbing?

Only if the complete dimensions, rim, bicycle, load, and pressure specifications approve that replacement.

Why does the tire rub only once per turn?

Uneven tire seating, a bulge, rim wobble, or wheel damage may move the contact point cyclically.

Before making the final choice, revisit the exact route or driving area at the time it will normally be used. A setup that works during a quiet test may need more room, visibility or adult support when other people and everyday obstacles are present.

Bottom line

Use the answer to kids bike tire rubbing frame as a decision process, not a shortcut. Confirm the live product data and manual, match the rider to the controls and setting, and favor repeatable control over a larger size or higher performance label.
